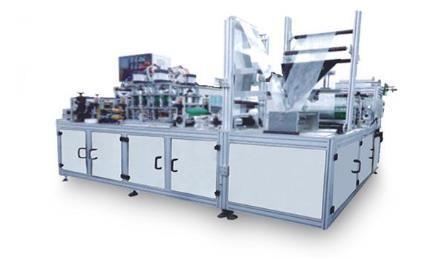

In the production of pearly membrane silk cloth mask mask
all-in-one
Features:
1, the original pneumatic components are selected well-known
brands, long service life, easy maintenance and replacement.
2, film and machine contact parts are using 304# stainless steel,
food grade conveyor belt and other quality materials, in accordance
with the GMP standard;
3, a machine two station, that is, a single row of a two mask, the
full use of raw materials, reduce the loss, reduce the cost of
enterprises;
4, put the bag slot according to customer bag type flexible
adjustment, adjustable width 100~160mm length 140~200mm, special
size requirements of customers can be customized bag suction
device; the use of unconventional shape bags only need to replace
the bag body, other places without replacement;
5, Taiwan Delta PLC system, powerful, durable. The whole machine
control adopts 9 inch color Chinese touch screen, the equipment
operating parameters are set to be convenient, intuitive, with the
output statistics and equipment fault automatic diagnosis function,
so that production management, equipment management more efficient;
6, film folding bag process automatically completed, without manual
operation, save a lot of labor;
Specification:
| Model No. | QX6-A80 |
| Equipment size | L6800*W1800*H1780mm |
| Machine speed | 1600mm |
| Counter | Infrared dual probe |
| Production speed | 70 / minute |
| Total power voltage | AC380V 50HZ 6.5KW |
| Weight | about 2200kg |
| Location number | 2 (a) |
| The gas pressure | 0.6-0.8Mpa |
| Apply the mask layer | 2, 3, and part 1 layer |
